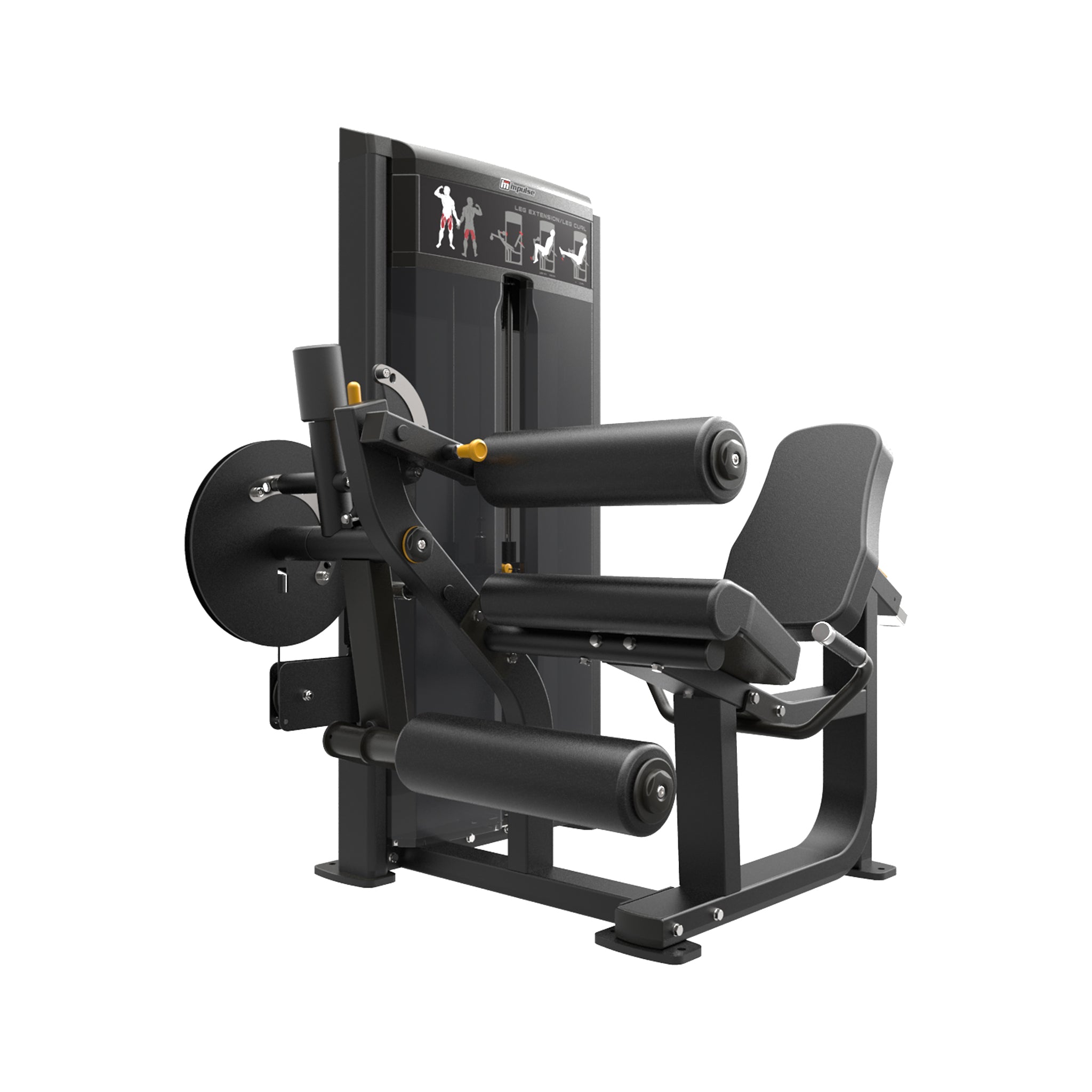

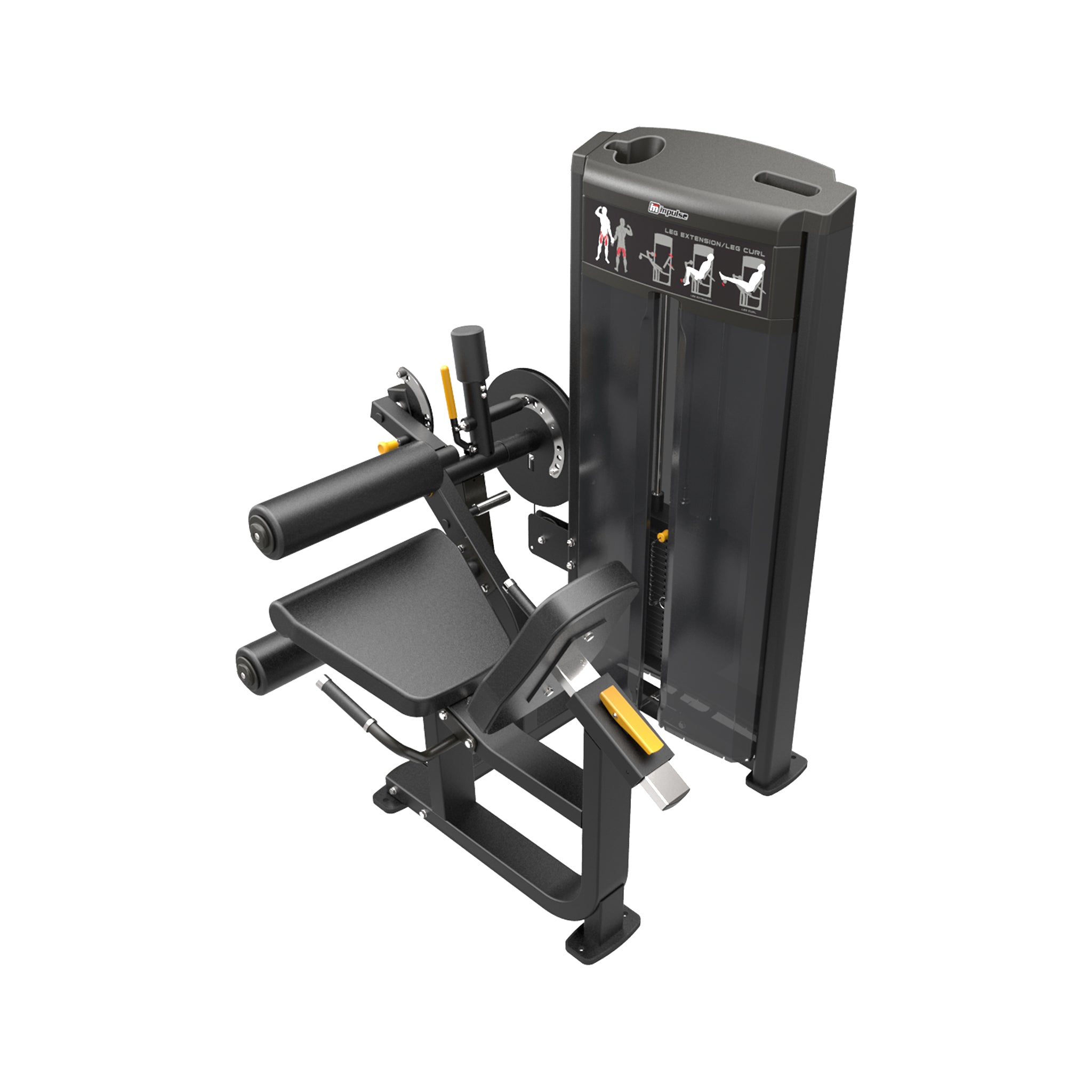

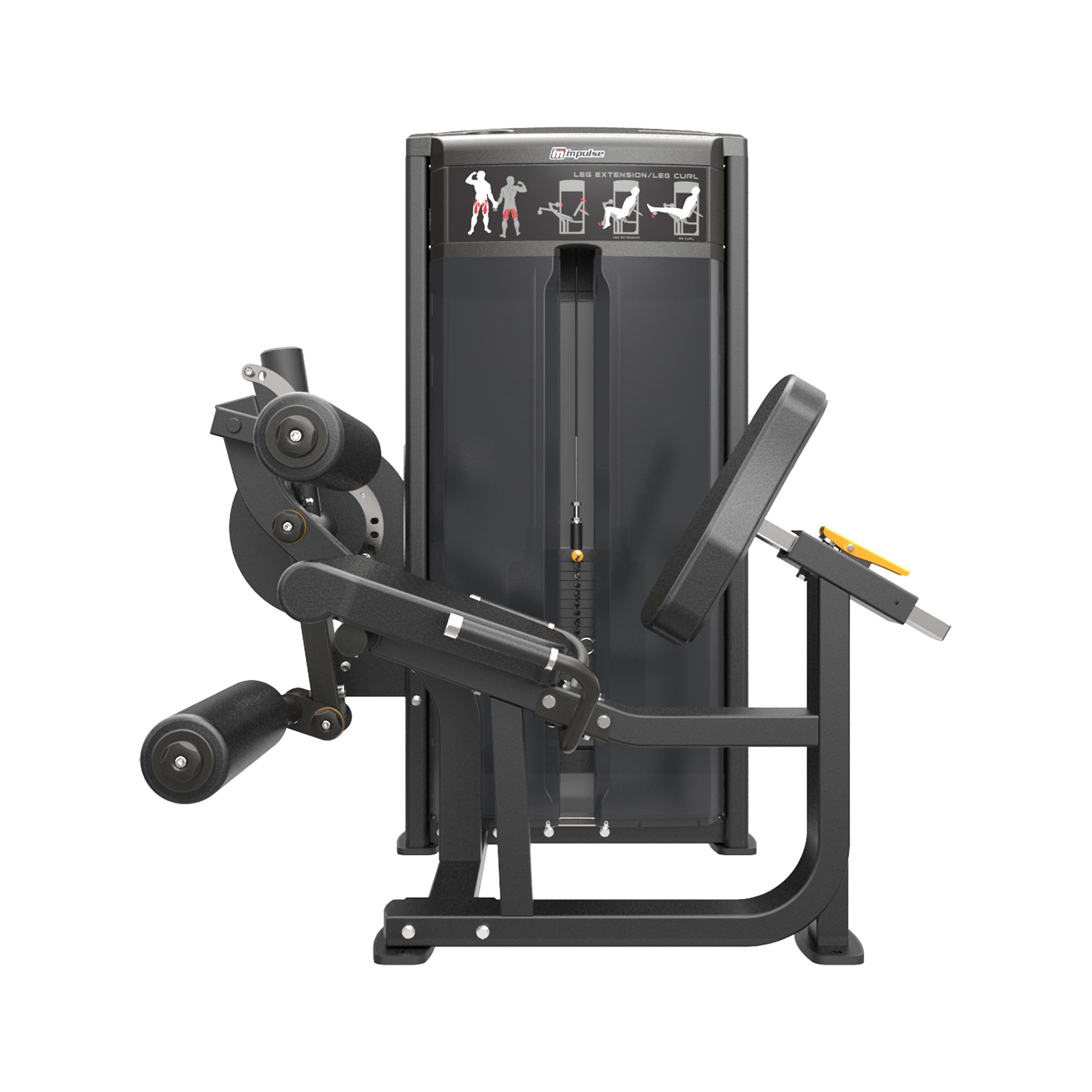

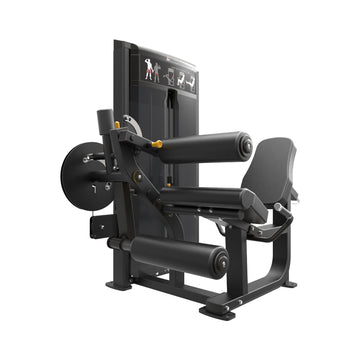

Impulse IF93 Leg Curl/Leg Extension

The Impulse IF9328 Leg Extension/Leg Curl is a dual-function lower-limb machine designed to target the rectus femoris, vastus lateralis, biceps femoris, and semitendinosus muscles. Users can perform both leg extensions and leg curls, selecting an appropriate weight and adjusting the back cushion and foam pads to suit their body. Ergonomically designed with stainless steel seat adjustments, the machine provides comfort, stability, and effective lower-body training.

Key Features

• Dual Functionality: Allows both leg extension and leg curl exercises.

• Ergonomic Design: Adjustable back cushion (compression-type elastic bolt, 8 levels) and foam pads for customized comfort.

• Durable Construction: Stainless steel and medium carbon steel frame, light grey ABS translucent shrouds, wear-resistant plastics.

• Selectorised Resistance: Weight stacks available in 160LBS / 200LBS / 235LBS / 295LBS increments.

• High-Quality Transmission: Solid φ19mm guide rods with hard chromium plating and PA6+30%GF main pulleys ensure smooth motion.

• User-Friendly: Circular tube handles with TPV covers and aluminum end caps; adjustable components accommodate users 155–195 cm tall.

Specifications

• Dimensions (L × W × H): 1292 × 1086 × 1530 mm

• Max User Weight: 150 kg

• Applicable Height Range: 155–195 cm

• Product Weight: 272.4 kg

• Gross Weight: 211.2 / 228.3 / 246 / 272.4 kg

• Weight Stack: 160LBS / 200LBS / 235LBS / 295LBS (10–15 lbs per plate)

• Targeted Muscle: Rectus femoris, Vastus lateralis, Biceps femoris, Semitendinosus

• Targeted Body Part: Lower Limbs

• Resistance: Selectorised (Multi-function)

• Upholstery: Black + Tree Bark stripe PVC, polymer foam stuffing

• Handle Material: TPV with aluminum end caps

• Guide Rods: Diameter 19mm solid steel with hard chromium plating
